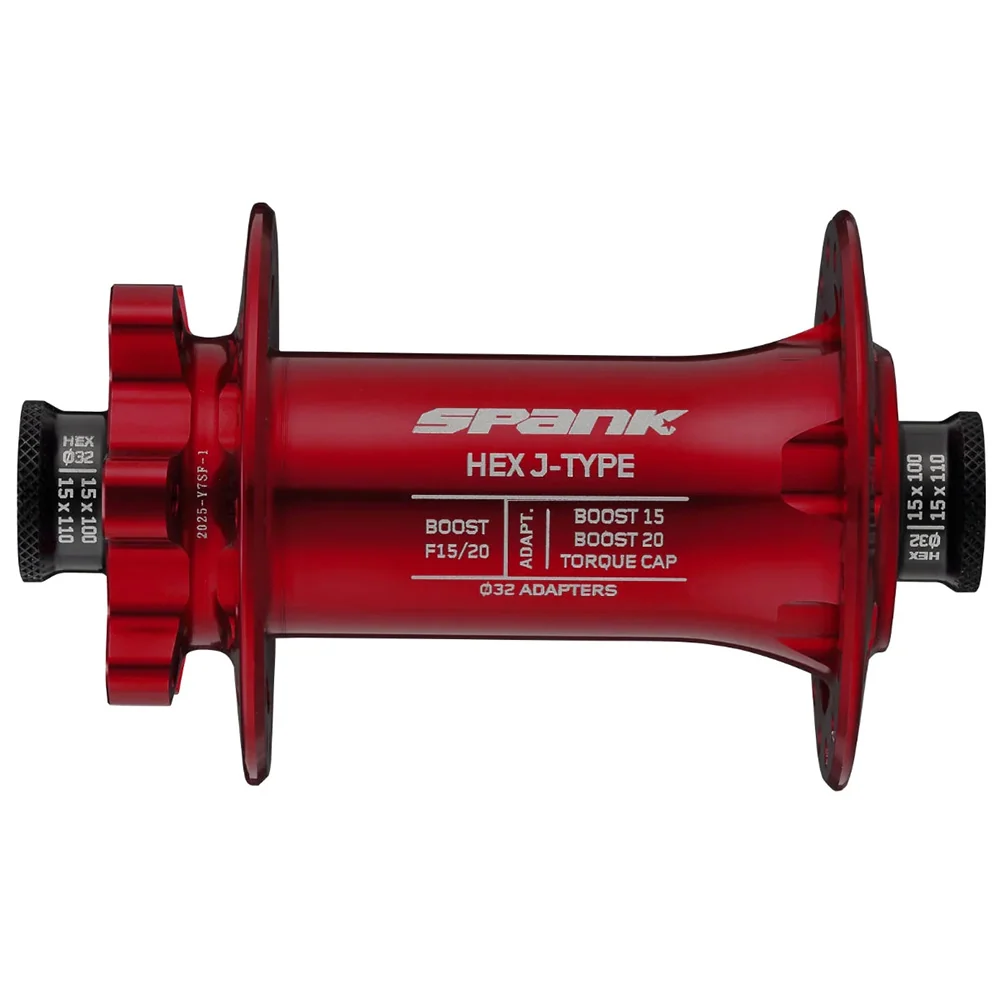

Spank HEX J-Type Front Hub

Front and centre of any great wheelset.

The New SPANK HEX DRIVE HUB, featuring:

• Oversized bearings for optimal adaptability
• Simple to maintain
• Light weight
• Advanced seal system
• Choose from BOOST 15/20x110mm or Non-Boost 15x100/20x110mm

Classification & Intended Use

All Mountain	✔
Trail	✔
Enduro	✔
Freeride	✔
Downhill	✔
Gravel	-
XC	-

• Weight optimised, gravity inspired front hub
• Ø32 Oversized bearings, allow adaptability up to 20mm thru-axles
• Unique flange design reduces dish requirement and minimises tension range between the drive side and non-drive side spokes
• Compatible with Ø32 HEX front hub adapters only
• Advanced seal system improves prevention of bearing contamination

Specifications

Hole Count	32H J-Hook
Disc Mount	6-bolt
Material	CNC optimised forged alloy hub body
Finish	Matte anodized, laser logos

Hub Configurations

	Boost F15/20	F15/20
Configuration	Boost 15x110, J-hook	20x110, J-hook
Weight ±	173g	165g
Adapters Included	Ø32 Boost 20x110	Ø32 15x100
Adapters Available Separately	Ø32 Torque Caps	Ø32 QRx100, Ø32 12x100

Compatible Adapters & Service Kits

Boost F15/20

• HEX Ø32 Boost Front Hub Torque Caps Adapter

F15/20

• HEX Ø32 Front Hub QRx100 Adapter
• HEX Ø32 Front Hub 12x100 Adapter

All HEX J-Type Front Hubs

• HEX Ø32 Front Hub Boost 15x110 Conversion Kit
• HEX Ø32 Front Hub Boost 20x110 Conversion Kit
• HEX Ø32 Front Hub Replacement Bearing Kit
