Raceface Era Carbon Handlebar

GIVE ARM PUMP THE AXE.

Era is Race Face’s carbon answer to arm pump and hand fatigue. Ride harder, ride faster and enjoy a consistently compliant feel in every width and every rise. To personalise your Era carbon bars even further, we made them in six eye-catching colours. And of course, Era is covered by our Lifetime Warranty, crashes included.

---

SHAPE THE FUTURE

The Era handlebar was designed from the ground up, narrowing the stem clamp area to allow both a quicker taper and an earlier rise to achieve our meticulously researched Goldilocks (GL) tune. GL tune is the sweet spot for compliance preferred by most riders; stiffer was too harsh, softer was too flexible.

LESS TRIMMIMG. MORE COMFORT

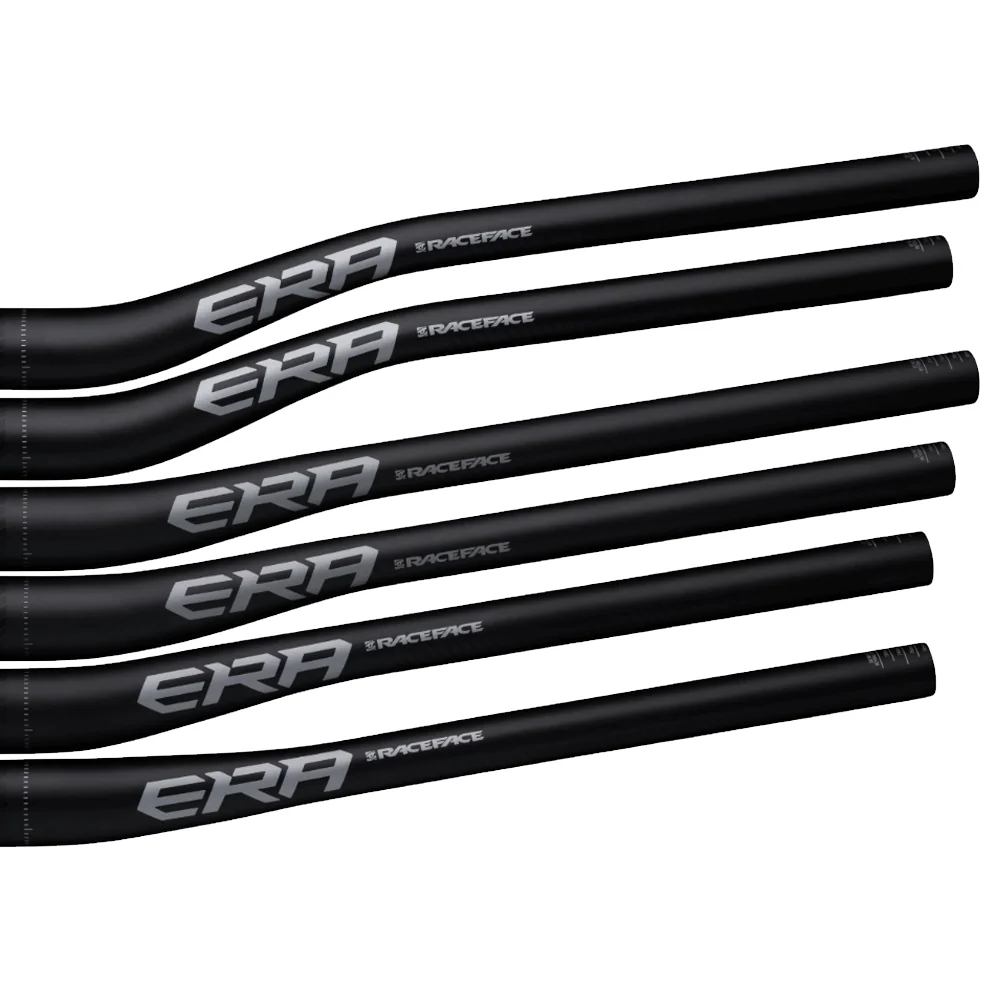

Trimming bars makes them stiffer and ultimately, less comfortable. Instead of making only 800mm lengths and expecting riders to cut them down, we made six carbon bars in your size and rise, all hitting our GL tune for reduced fatigue.

STRENGTH IN NUMBERS

We took nearly 100 individual pieces of hand-laid carbon fibre and bound them using a toughened epoxy resin, with a specific layup for each bar variant. The result is the highest strength-to-weight ratio of any handlebar we tested.

---

SPECS

Bar Diameter	35mm
Bar Rise	10mm, 20mm, 40mm (N/A in 760mm)
Bar Width	760mm, 780mm, 800mm
Bend (DEG)	8°
Upward Sweep (DEG)	5°
Material	UD Carbon
Weight	220g
Weight Conditions	800m width, 40mm rise
Max. Stem Clamp Width	60mm (not compatible with wider stems, like Direct Mount stems)
eMTB Ready	Designed for the abuse of All-Mountain and Enduro riding, even on full-power e-bikes.
