Profile Design HSF 800 EVO

Overview

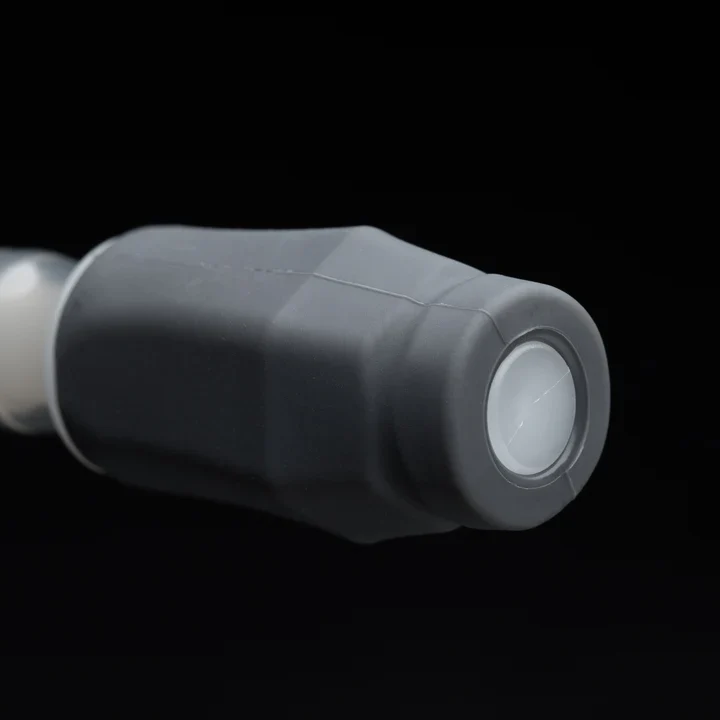

• Flexible hose with bite valve and magnetic retention.

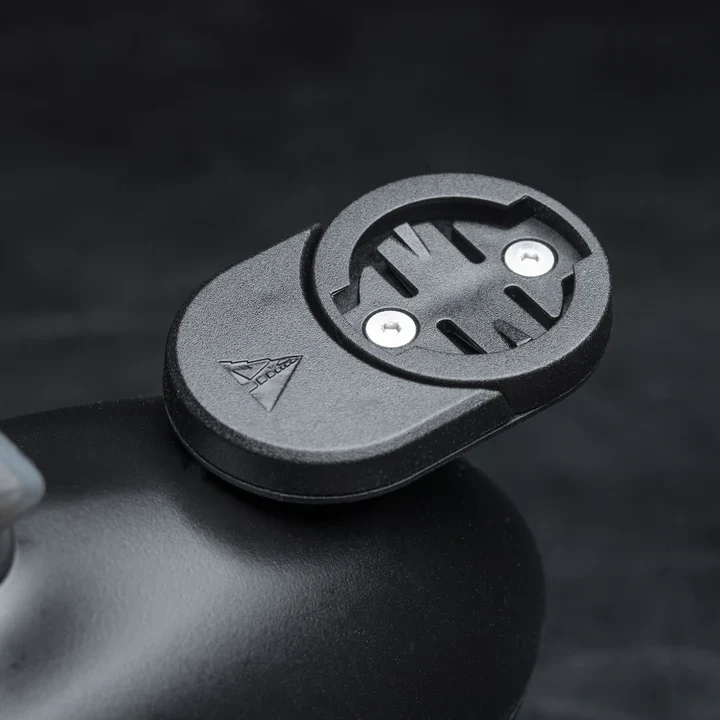

• Direct Garmin mount / removable.
• New mounting bracket with greater compatibility than previous models.
• New cage with high retention.
• Rear cap can be removed for easy cleaning.

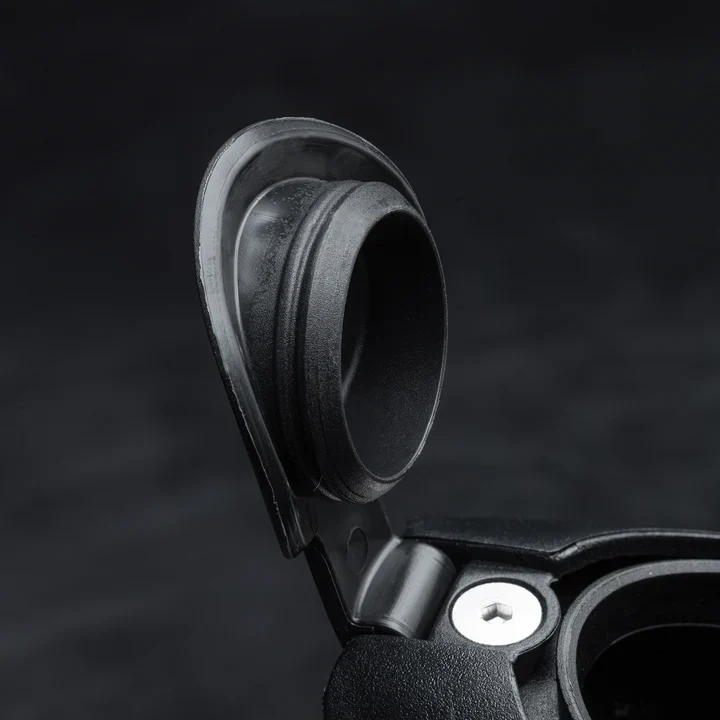

• Secure fill port lid to avoid splashing.

Additionally, the shape of the bottle has been designed to hide the cage from the wind. We worked to minimise frontal area wherever possible to avoid adding aero drag to your setup.

Performance

The HSF BTA cage takes a minimalist approach to providing the maximum versatility for a between the arms bottle mount. The low weight, high retention, setback mount point and integrated computer mount give everything you need and nothing you don’t.

The mount is offset so that the centre point of the bottle bolts can sit well behind the attachment point. This allows the cage/bottle to be set further back on aerobars that would otherwise force the bottle forward to the point where it is inaccessible.

The BTA mount has a slightly dropped ‘V’ shape to help centre it between the extensions and reduce the risk of the bottle interfering with narrow armrest positions. The mount accommodates a 40mm range in extension spacing.

Tech Specs

• Bottle Construction: BPA-Free, Food safe HDPE Bottle
• Bottle Capacity: 765 g (800ml)
• Compatibility
• Computer Compatibility: Garmin: Mount is optional and can be removed.  (Wahoo: Adapters available via 3rd party purchase).
• Cage / BTA Construction: Injected nylon/glass fibre construction
• Mount offset: 30mm
• Mount drop: 10mm
• Extension Width Requirement: 80mm - 120mm (centre - centre)
• Colours: Black
• Weight: 387g (System), 100g (Bracket Only)

Tech Guide

Torque settings

• Mounting Bolts: 4Nm (53 inlbf)

Manual

(request on WhatsApp)

Installation videos

How to Clean - HSF/Aero HC 800+ System

How to Install - HSF/Aero HC 800+ System
