Merits P710 Atlantis 272 kg Capacity Bariatric Power Wheelchair

THE THREE NUMBERS THAT MATTER MOST

Will the Atlantis Heavy-Duty Power Wheelchair Fit You?

📏 SEAT WIDTH 24" or 26" Extra-wide Captain's seat - your choice ⚖️ WEIGHT CAPACITY 272 kg Reinforced four-post bariatric frame 🔋 RANGE PER CHARGE 51 km All-day driving on a single charge

💡 How to pick your seat width: Measure your hips at the widest point while sitting. Add 1"-2" for comfort. Most users choose 24"; choose 26" if your hip measurement is over 22" or you want extra room.

Atlantis Heavy-Duty Power Wheelchair - Real Freedom, Real Comfort

If you've been looking for a power wheelchair that truly fits a larger frame, gives you real all-day comfort, and won't let you down on hills, ramps, or uneven ground - meet the Merits Atlantis Heavy-Duty Power Wheelchair.

This Group 2 bariatric power chair is built in the USA by Merits Health. With its 24" or 26" extra-wide Captain's seat, true 272 kg weight capacity, and 51 km range per charge, the Atlantis is designed for people who need real space, real strength, and real range - not just marketing claims.

✓ Made in USA · ✓ Free Shipping · ✓ Up to 5-Year Warranty

Why People Choose the Atlantis Heavy-Duty Power Wheelchair

📏

24" or 26" Seat Width

Two wide-seat options to comfortably fit larger riders - no squeezing, no pinching.

💪

True 272 kg Capacity

Reinforced four-post bariatric frame - built to handle full daily use without fatigue or flex.

🛣️

51 km Driving Range

Two 75Ah AGM batteries give you all-day power. Errands, appointments, and dinner - no recharge stops.

⛰️

Climbs 10° Ramps

Super-powered in-line motors take on home ramps, parking area grades, and hills with ease.

🎯

Tight 31.5" Turning

Surprisingly manoeuvrable for its size - fits through doorways, hallways, and tight indoor spaces.

🛞

Smooth 12" Wheels

Big pneumatic tyres soak up bumps, cracks, and uneven pavements for a smoother ride.

Seat Width Options on the Atlantis Heavy-Duty Power Wheelchair

A standard power chair has a 16"-20" seat. The Atlantis goes much wider - because real comfort for bariatric riders starts with real space.

MOST POPULAR 24" wide

Best for hip measurements up to 22". Generous space without being too big to manoeuvre indoors.

EXTRA-WIDE 26" wide

Best for hip measurements 22"-24", or when you want maximum hip room and side comfort.

Not sure which to choose? Call 065 199 4174 - our mobility specialists will help you size it right.

Weight Capacity of the Atlantis Heavy-Duty Power Wheelchair

The Atlantis is rated for a true 272 kg weight capacity - not a number that drops once you add accessories or hit a bump. Here's why it actually holds up:

• Four-post seat frame - twice the support of standard two-post designs. The seat stays anchored even at full capacity.
• Reinforced steel base - the same heavy-duty frame design used in complex rehab chairs.
• High-torque in-line motors - sized to move a fully loaded chair up a 10° incline, not just on flat ground.
• 3" anti-tippers - prevent tipping backward even when accelerating up a ramp.

⚠️ Honest note: Weight capacity covers rider + anything you carry (oxygen tank, bags, groceries). For best results and maximum lifespan, leave a 11-23 kg buffer below 272 kg.

Driving Range of the Atlantis Heavy-Duty Power Wheelchair

With two 75Ah AGM batteries, the Atlantis can travel up to 51 km on a single charge. That's one of the longest ranges in the bariatric power chair category. Here's what that actually looks like in real life:

🏥 Doctor appointment day: Round trip to a clinic 8 km away + parking area rolling around → ~19 km. Easy.

🛒 Errand day: Grocery store, pharmacy, post office → ~13 km. Easy.

🌳 Park outing: A full afternoon at a state park with paved trails → ~9.7-16 km. Easy.

🏠 Daily home use: Around the house and yard → days between charges.

Note: Real-world range depends on rider weight, terrain, temperature, and battery age. New batteries also need a 2-week break-in period of daily charging to reach full range.

All-Day Comfort with the Atlantis Heavy-Duty Power Wheelchair

Long days deserve a chair that's kind to your body. Every comfort feature on the Atlantis was chosen with bariatric and senior riders in mind:

• Captain's-style seat with thick padding and supportive bolsters
• Extra-tall 21.25" backrest for full shoulder and upper-back support
• Adjustable seat depth from 20" to 22" in 1" steps - dial in your perfect fit
• Flip-up, height-adjustable armrests that detach for easier transfers

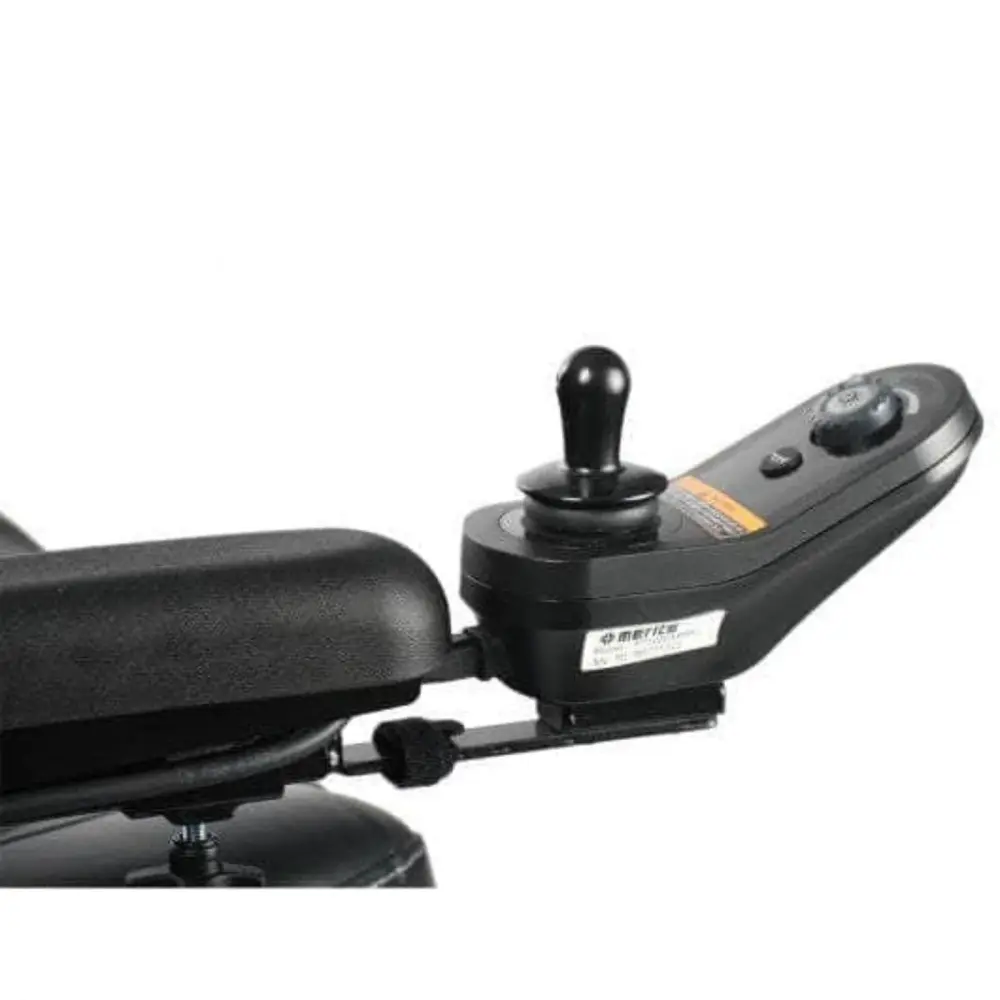

• Swing-away joystick to roll right up to tables, desks, and counters
• Semi-reclining backrest for a more relaxed seating angle

Power & Performance of the Atlantis Heavy-Duty Power Wheelchair

Two super high-power in-line motors give the Atlantis the muscle to take on real-world terrain that stops smaller chairs cold. The smart Dynamic LiNX controller makes driving easy to learn - even if you've never operated a power chair before.

8 km/h TOP SPEED 51 km PER CHARGE 10° MAX INCLINE 272 kg CAPACITY

Built-In Safety of the Atlantis Heavy-Duty Power Wheelchair

• 3" rear anti-tippers prevent tipping backward on inclines
• Light reflectors boost visibility in dim conditions
• Seat belt included for secure seating
• Rugged pneumatic tyres grip every surface - pavement, gravel, grass

Who the Atlantis Heavy-Duty Power Wheelchair Is For

✓ Bariatric users who need a chair rated for up to 272 kg

✓ Seniors who want a stable, comfortable, easy-to-operate power chair

✓ Complex rehab users

✓ Daily riders who need real range and real durability

✓ Anyone who's outgrown a standard mid-size chair

Colour Choices for the Atlantis Heavy-Duty Power Wheelchair

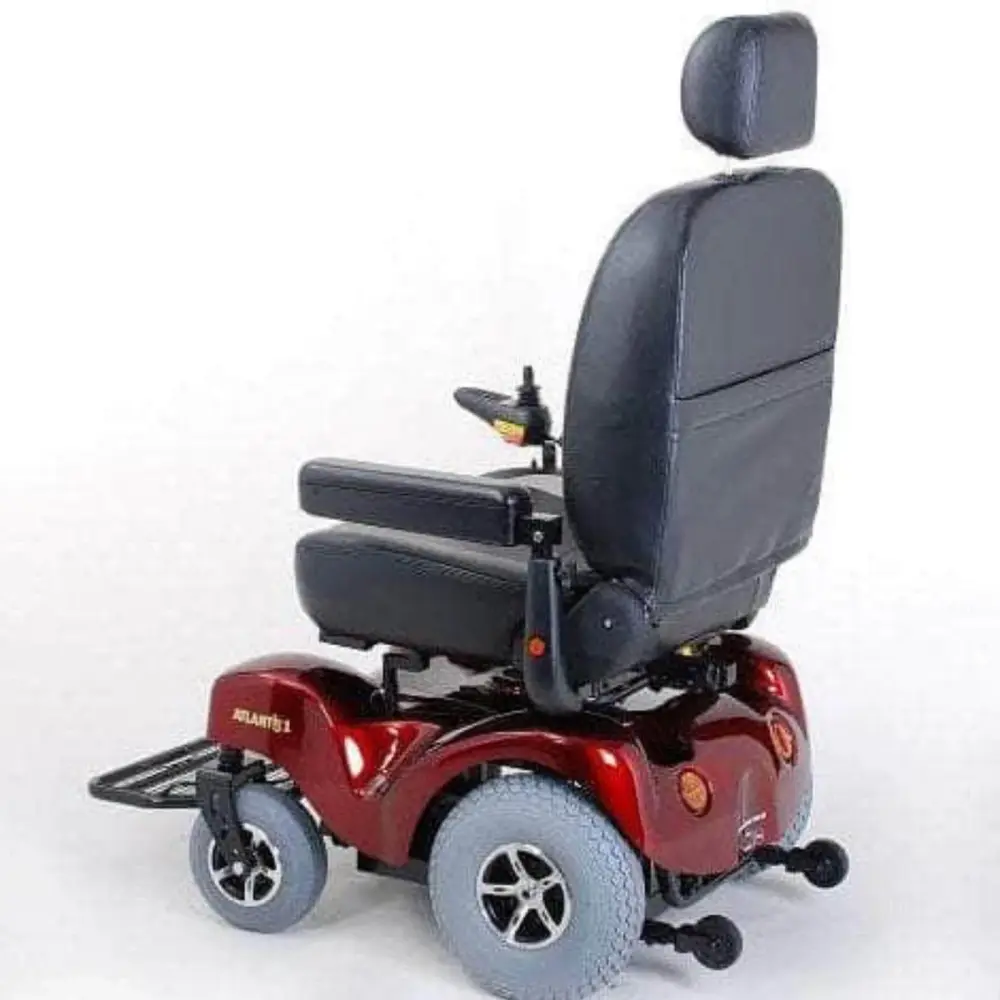

COLOUR OPTION Metallic Blue Sleek and modern COLOUR OPTION Candy Apple Red Bold and bright

Optional Accessories for the Atlantis Heavy-Duty Power Wheelchair

Customise your Atlantis with genuine Merits add-ons. Click any accessory to view it and add it to your cart alongside your chair - or call 065 199 4174 and we'll add them to your order for you:

☕ Merits Cup Holder - 🔩 Mounting Bracket for Cup Holder - 👜 Merits Side Bag - 🔒 Safety Belt - 🚩 Safety Flag - 🧺 Foldable Rear Basket (Medium) · seat bracket - 🧺 Foldable Rear Basket (Large) · seat bracket - ☔ Weatherproof Cover - 🫁 Oxygen Tank Holder · seat bracket - 🫁 Oxygen Tank Bag Holder · backrest - 🦯 Cane & Crutch Holder · seat bracket - 🩼 Crutch Holder · backrest - 🦯 Cane Holder · backrest - 🚶 Walker Holder · seat bracket - 🚶 Walker Holder · backrest -

Full Specifications of the Atlantis Heavy-Duty Power Wheelchair

DIMENSIONS & CAPACITY
Model Number	P710A
	K0826 / K0827
Weight Capacity	272 kg.
Total Weight	138 kg.
Heaviest Piece	76 kg.
SEAT & FRAME
Seat Type	Captain
Seat Width	24" or 26"
Seat Depth	20" - 22" (1" adjustments)
Backrest Height	21.25"
Seat-to-Floor Height	22" - 23"
Overall Length	33"
Overall Width	32"
Overall Height	41.5"
Turning Radius	31.5"
Ground Clearance	2.75"
PERFORMANCE
Drivetrain	Rear-Wheel Drive (RWD)
Max Speed	8 km/h
Range Per Charge	Up to 51 km
Max Gradient	10°
Motor	DC 24V / 300W
Controller	Dynamic LiNX
Batteries	(2) 75Ah M24 AGM (MK)
Charger	6A off-board
WHEELS
Front Wheels	9" pneumatic
Drive Wheels	12" pneumatic
Rear Wheels	3" anti-tippers

Manufacturer Warranty on the Atlantis Heavy-Duty Power Wheelchair

Every Merits Atlantis Heavy-Duty Power Wheelchair comes backed by the official Merits Health Products manufacturer warranty - one of the most comprehensive warranties in the bariatric power chair industry. It's structured so that the parts most likely to last a long time are covered the longest, and parts that naturally wear faster have shorter coverage that still gives you peace of mind through the break-in period.

Important to know up front:

📅 Coverage starts on the original date of consumer purchase, not the date of manufacture.

👤 Warranty applies to the original consumer only - it does not transfer if you resell the chair.

🔧 Merits Health will repair or replace any covered part found to have a manufacturing defect.

🏠 Coverage applies to personal home use only - commercial use voids the warranty.

Coverage by Component - What You Get, Tier by Tier

★ TIER 1 - LONGEST 5-Year Warranty

The structural backbone of your chair - the parts that should last as long as you own it. Covered for a full five years from your purchase date:

✓ Base Frame - the welded steel structure

✓ Seatbelt - your primary safety restraint

TIER 2 - ELECTRONICS 18-Month Warranty

Your chair's drivetrain and electronics - the powered parts that make it move. Covered for 18 months from your purchase date:

✓ Joystick, Power Module & Controller - your driving and control system

✓ Motor, Gearbox & Brake Assembly - what moves and stops the chair

✓ Electrical Harnesses - the wiring that ties everything together

✓ Angle Sensor & Circuit Boards - internal electronics

✓ Charger - the off-board 6A unit included with your chair

✓ Transaxle - power delivery to the drive wheels

✓ PC Cushion, Back & Positioning Accessories

TIER 3 - FRAME PARTS 13-Month Warranty

Structural and mounting components, plus your batteries. Covered for 13 months from your purchase date:

✓ Seat Post / Mount - the four-post bariatric support system

✓ Power Seat Actuator - for the optional power seat upgrade

✓ Caster Beam & Caster Forks - front wheel mounting hardware

✓ Joystick Mounting Bracket

✓ Metal Seat Frame

✓ Anti-Tipper Assembly - rear safety hardware

✓ 75Ah AGM Batteries - both batteries that come with your Atlantis

✓ Powered Footplate

✓ Armrest Bracket (metal parts only)

TIER 4 - WEAR PARTS 6-Month Warranty

Moving and contact parts that naturally see more wear. Covered for six months from your purchase date:

✓ Bearings / Bushings

✓ Front Riggings

✓ Non-Powered Footplate

✓ PC Cover / Gel Pack

✓ Swivel Seat Mechanism

What the Warranty Does Not Cover

Like every manufacturer warranty, certain items are excluded - generally consumable parts or things that wear from normal use:

Excluded parts:

✗ Tyres & tubes

✗ Fuses & bulbs

✗ Battery cases (the casing, not the batteries themselves)

✗ Plastic and rubber parts

✗ Motor brushes & brake pads

✗ Upholstery (seat pads, arm pads, padding)

✗ Painted surfaces (shrouds, fenders)

The warranty becomes void if damage results from any of the following:

• Acts of nature, theft, or loss - flooding, fire, or stolen units are not covered
• Commercial or rental use - coverage is for personal home use only
• Accidents - collisions, drops, or impact damage
• Neglect or improper operation - not following the owner's manual, missed maintenance, exceeding capacity
• Unauthorized service - repairs or modifications by anyone not authorised by Merits Health Products
• Removed or defaced serial numbers - Merits must be able to verify your chair's identity

Important Things to Know About Filing a Warranty Claim

💰 What you pay vs. what Merits pays: Merits Health Products covers the cost of the defective parts. You are responsible for labour, service calls, transportation, freight, and installation costs related to warranty repairs.

🔧 New or refurbished parts: Merits may choose to repair your chair with either new or refurbished parts, at their discretion.

⏰ Parts bought outside warranty: Replacement parts purchased on their own have a 90-day window to report a manufacturing defect.

📋 State law: This warranty gives you specific legal rights. You may have additional rights that vary from state to state.

How to start a warranty claim: Contact Dignity Mobility at 065 199 4174 or email info@Dignity Mobility with your order number, the serial number of your chair, and a description of the problem. As an authorised Merits dealer, we'll help coordinate your claim directly with Merits Health Products.

Full warranty terms available at meritsusa.com/warrantypolicy · Dignity Mobility is an authorised Merits Health Products dealer.

Order Your Atlantis Heavy-Duty Power Wheelchair Today

The Merits Atlantis Heavy-Duty Power Wheelchair is made in the USA and backed by one of the most thorough manufacturer warranties in the bariatric power chair category. Whether you're upgrading from a smaller chair, replacing a worn-out unit, or buying your very first power wheelchair - the Atlantis delivers the strength, comfort, and reliability you can count on for years.
